首頁歐美晶振Microchip晶振Microchip品牌-DSC1103DI2-312.5000-6G存儲網絡晶振

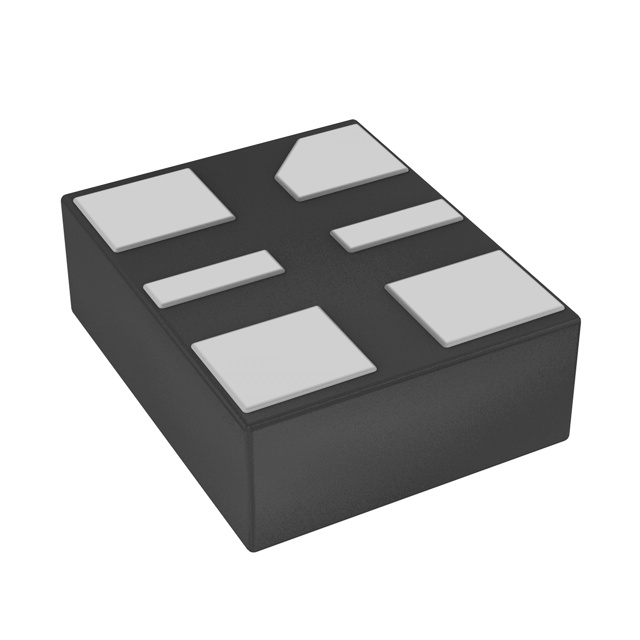

Microchip品牌-DSC1103DI2-312.5000-6G存儲網絡晶振

  • 頻率：312.5MHz
  • 尺寸：2.5×2.0mm
  • 應　用： 歐美晶振,Microchip晶振,DSC1103有源晶振,DSC1103DI2-312.5000晶振,SMD晶振,2520mm晶振,LVDS晶振,貼片石英晶振,頻率312.5MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性25ppm,輕薄小晶振,低相位抖動晶振,無鉛環保晶振,6G...
  • RoHS RoHS2

Microchip品牌-DSC1103DI2-312.5000-6G存儲網絡晶振,歐美晶振,Microchip晶振,DSC1103有源晶振,DSC1103DI2-312.5000晶振,SMD晶振,2520mm晶振,LVDS晶振,貼片石英晶振,頻率312.5MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性25ppm,輕薄小晶振,低相位抖動晶振,無鉛環保晶振,6G存儲區域網絡晶振,無源光網絡晶振,顯示端口晶振,便攜式設備晶振.
Microchip品牌-DSC1103DI2-312.5000-6G存儲網絡晶振特點：
•低RMS相位抖動:<1 ps(類型)
•高穩定性:±10 ppm，±20 ppm，±25 ppm，±50 ppm
•寬溫度范圍:
-Ext.工業:- 40°C至+105°C
-工業:- 40℃~ +85℃
-商用:- 20℃~ +70℃
•高電源噪聲抑制:-50 dBc
•寬頻率范圍:2.3 MHz至460 MHz
•小的行業標準足跡
- 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mmX 3.2 mm和7.0 mm X 5.0 mm
•卓越的抗沖擊和抗振動能力
-符合MIL-STD-883標準
•高可靠性
- MTF比石英振蕩器好20倍
•低電流消耗
•電源范圍2.25至3.63V
•待機和輸出使能功能
•無鉛，符合RoHS標準

Microchip品牌-DSC1103DI2-312.5000-6G存儲網絡晶振規格表
項目 規格說明 條件
額定頻率 312.5MHz 請聯系我們以便獲取其它可用頻率的相關信息
電源電壓 3.3V
儲存溫度 -55℃~+150℃ 裸存
工作溫度 -40℃~ +85℃
頻率穩定度 ±25ppm 包括由初始公差、溫度和電源電壓引起的頻率變化
老化 ±5ppm 1 year @ +25°C
電流 32mA  Max
Output Enabled, RL = 100Ω
負載 15pf
輸出偏移電壓（Vos） 1.4V  Max
R = 100Ω Differential
增量失調電壓（ΔVOS） 50mV Max
-
輸出上升下降時間 200ps Max  20%/80%
RL = 50Ω,CL=15pF
占空比 48%~52%
輸入邏輯電平高（VIH） 0.75×VDD Min
Input  logic  high
輸入邏輯電平低（VIL） 0.25x VDD  Max
Input  logic  low
起始時間 5 ms Max T = +25°C
周期抖動  2.5psRMS
-
集成相位噪聲
2psRMS
12 kHz to 20 MHz @ 156.25 MHz

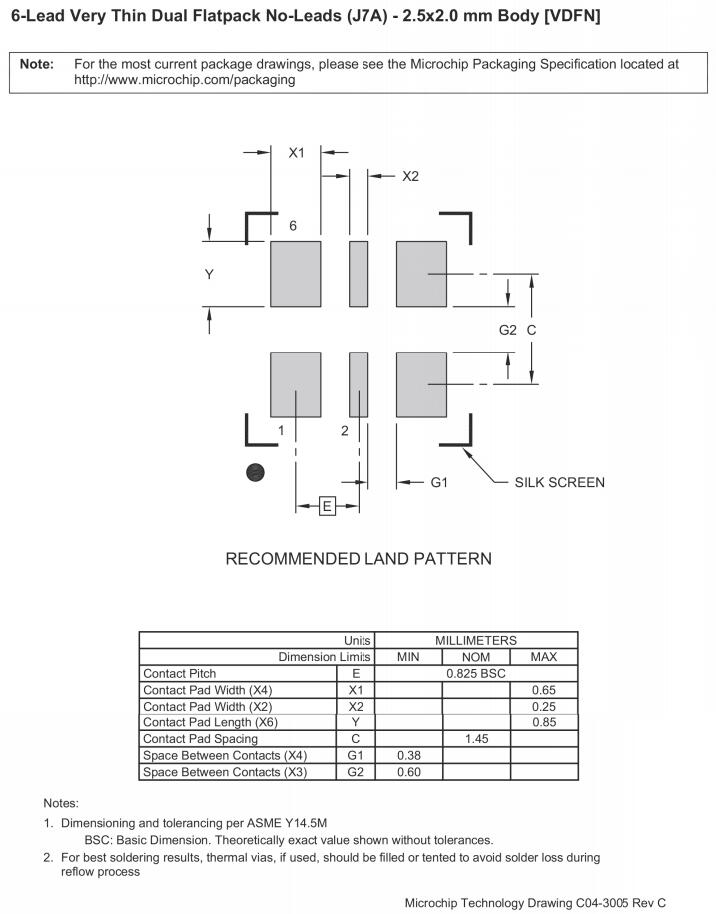

Microchip品牌-DSC1103DI2-312.5000-6G存儲網絡晶振尺寸圖



原廠代碼 晶振品牌 型號 頻率 電壓 尺寸
DSC1103DI2-312.5000 Microchip Technology DSC1103 312.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103CI5-300.0000 Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103BI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-135.0000 Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181 Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103CI5-224.8200 Microchip Technology DSC1103 224.82MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103BL5-062.5000 Microchip Technology DSC1103 62.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CL5-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.2090T Microchip Technology DSC1103 233.209MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.2090 Microchip Technology DSC1103 233.209MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI2-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-019.2000 Microchip Technology DSC1103 19.2MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103CE1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-135.0000 Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-122.8800 Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-135.0000T Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-122.8800T Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103BE1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103AE1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI2-130.0000T Microchip Technology DSC1103 130MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CI2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI2-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BI2-135.0000T Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103AI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-171.8181 Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI2-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BL2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.3333 Microchip Technology DSC1103 233.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-114.0000 Microchip Technology DSC1103 114MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-140.0000 Microchip Technology DSC1103 140MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-224.8200T Microchip Technology DSC1103 224.82MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI5-120.0000 Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-250.0000 Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BL5-062.5000T Microchip Technology DSC1103 62.5MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103DL5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DL5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0060 Microchip Technology DSC1103 125.006MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0060T Microchip Technology DSC1103 125.006MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103BE1-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103AI1-112.0000 Microchip Technology DSC1103 112MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-112.0000T Microchip Technology DSC1103 112MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-160.0000 Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-160.0000T Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CE2-074.2500 Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-074.2500T Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-012.0000 Microchip Technology DSC1103 12MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-012.0000T Microchip Technology DSC1103 12MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI1-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI1-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103NI1-074.2500 Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-074.2500T Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3300T Microchip Technology DSC1103 83.33MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3333T Microchip Technology DSC1103 83.3333MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-212.5000T Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-300.0000T Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-250.0000T Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-120.0000T Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BE1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-168.5000T Microchip Technology DSC1103 168.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-122.8800T Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-160.0000T Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-166.0000T Microchip Technology DSC1103 166MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-244.0000T Microchip Technology DSC1103 244MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.3333T Microchip Technology DSC1103 233.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DE1-148.2500T Microchip Technology DSC1103 148.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DE1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103AE1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3300 Microchip Technology DSC1103 83.33MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3333 Microchip Technology DSC1103 83.3333MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-212.5000 Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-300.0000 Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-250.0000 Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BE1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-074.2129 Microchip Technology DSC1103 74.2129MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-120.0000 Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-212.5000 Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-168.5000 Microchip Technology DSC1103 168.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-122.8800 Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-160.0000 Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-166.0000 Microchip Technology DSC1103 166MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-244.0000 Microchip Technology DSC1103 244MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DE1-148.2500 Microchip Technology DSC1103 148.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DE1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103BL1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE5-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-180.0000T Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-180.0000T Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI1-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-019.2000T Microchip Technology DSC1103 19.2MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103NI1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI2-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-130.0000 Microchip Technology DSC1103 130MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BL1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CI2-180.0000 Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-180.0000 Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI1-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103NI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE2-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE2-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-250.0000T Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CE5-266.6667 Microchip Technology DSC1103 266.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-266.6667T Microchip Technology DSC1103 266.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-114.0000T Microchip Technology DSC1103 114MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-140.0000T Microchip Technology DSC1103 140MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
公司：深圳市億金電子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://www.lbfp.com.cn
地址：廣東省深圳市寶安區新安107國道旁

相關產品

誠征下列地區 晶振 | 石英晶振 | 圓柱晶振 | 貼片晶振 | 陶瓷晶振 | 石英晶體諧振器 | 頻率元件 的合作伙伴：
深圳市 廣州市 北京 上海 東莞 佛山 中山 順德 珠海 杭州 溫州 武漢 長沙 南京 大連 長春 西安 鄭州 澳門 沈陽 南寧 昆明 濟南 重慶 成都
kf
kf
close
kf 億金微信號
主站蜘蛛池模板： 色偷偷网址 | 大伊人青草狠狠久久 | 午夜人妻理论片天堂影院 | 在线高清电影理论片4399 | 日本高清在线一区二区三区 | 一个人在线观看免费视频 | 久久久精品3d动漫一区二区三区 | 国产成人免费高清视频 | 国产亚洲精品久久久无码狼牙套 | 欧美日韩一区二区三区四区 | 久久看片网 | 97超碰在线视频人人av | 陈红下面又紧又小好爽 | 久久99re2热在线播放7 | 国产精品成人在线播放 | 最近在线视频观看2018免费 | 亚洲高清中文字幕免费 | 草莓视频在线观看完整高清免费 | 强行撕开衣服捏胸黄文 | 最近2019中文字幕免费版视频 | 999人在线精品播放视频 | 蜜桃AV色欲A片精品一区 | 琪琪see色原网色原网站 | 男女车车的车车网站W98免费 | 成年AV动漫| 国产亚洲精品AV片在线观看播放 | 伊人网久久网 | 精品无人区一区二区三区 | 午夜勾魂曲| 久青草国产97香蕉在线视频 | 2019欧洲hd | 精品国产午夜福利在线观看蜜月 | 在野外被男人躁了一夜动图 | 国产成人在线视频免费观看 | 免费A级毛片无码鲁大师 | 蜜芽一区二区国产精品 | 亚洲精品国产拍在线观看 | qvod欧美电影| 娇小亚裔被两个黑人 | 亚洲不卡一卡2卡三卡4卡5卡 | 97超碰在线视频 免费 |
