美國ILSI晶振|ISA12-3EAH-28.800 MHz|耐高溫振蕩器

  • 頻率：28.8MHz
  • 尺寸：2.5×2.0mm
  • 應　用： 美國ILSI晶振,ISA12進口有源晶振,石英晶振,ISA12-3EAH-28.800 MHz晶振,2520mm晶振,晶體振蕩器,四腳貼片晶振,頻率28.8MHz,電壓3.3V,工作溫度-40~105°C,頻率穩定性25ppm,LVCMOS兼容輸出,耐高溫晶振,耐老化晶振,儀表盤晶...
  • RoHS RoHS2


美國ILSI晶振|ISA12-3EAH-28.800 MHz|耐高溫振蕩器,美國ILSI晶振,ISA12進口有源晶振,石英晶振,ISA12-3EAH-28.800 MHz晶振,2520mm晶振,晶體振蕩器,四腳貼片晶振,頻率28.8MHz,電壓3.3V,工作溫度-40~105°C,頻率穩定性25ppm,LVCMOS兼容輸出,耐高溫晶振,耐老化晶振,儀表盤晶振,TPMS晶振,GPS導航晶振,ADAS應用晶振.
美國ILSI晶振|ISA12-3EAH-28.800 MHz|耐高溫振蕩器特點
●通過AEC-Q200認證
●通過TS16949認證的生產線
●LVCMOS兼容輸出
●行業標準包裝2.5mm x 2.0mm
●五種電源電壓選擇，1.8V, 2.5V, 2.8V, 3.0V或3.3V
●無鉛、無鹵、無銻
●符合RoHS和REACH標準

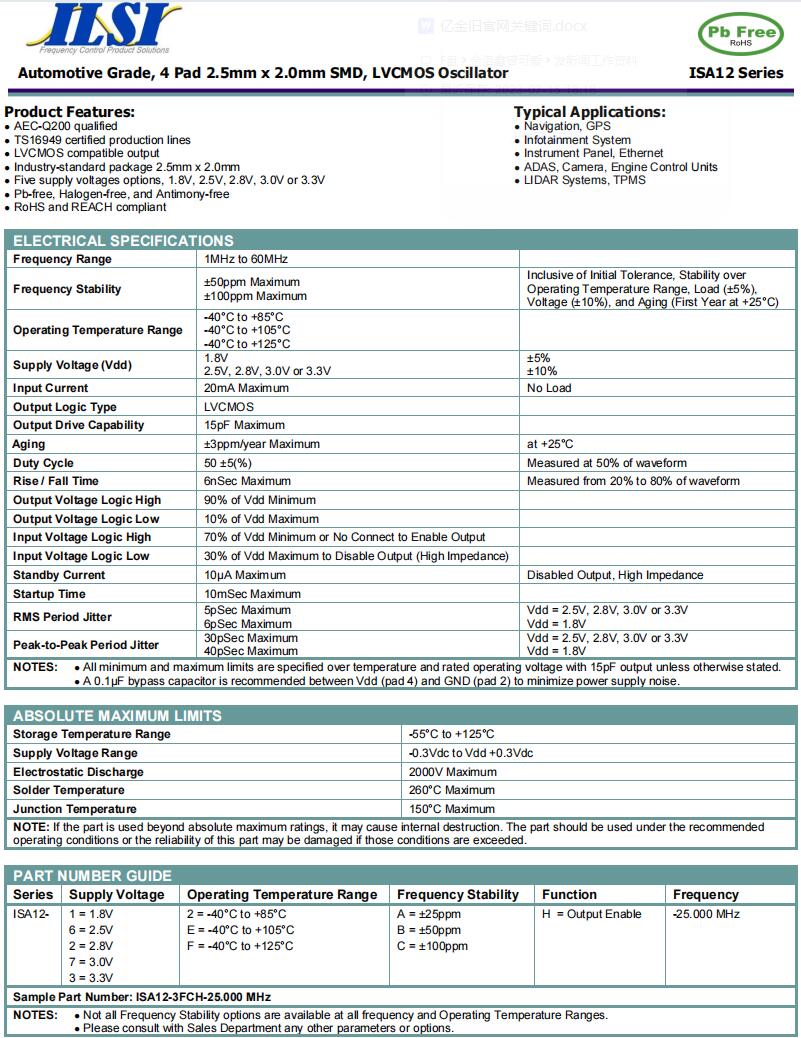

美國ILSI晶振|ISA12-3EAH-28.800 MHz|耐高溫振蕩器規格表
Frequency Range 28.8 MHz
Frequency Stability ±50ppm Maximum
±100ppm Maximum		 Inclusive of Initial Tolerance, Stability over  Operating Temperature Range, Load (±5%), Voltage (±10%), and Aging (First Year at +25°C)
Operating Temperature Range -40°C to +85°C
-40°C to +105°C
-40°C to +125°C
Supply Voltage (Vdd) 1.8V
2.5V, 2.8V, 3.0V or 3.3V		 ±5%
±10%
Input Current 20mA Maximum No Load
Output Logic Type LVCMOS
Output Drive Capability 15pF Maximum
Aging ±3ppm/year Maximum at +25°C
Duty Cycle 50 ±5(%) Measured at 50% of waveform
Rise / Fall Time 6nSec Maximum Measured from 20% to 80% of waveform
Output Voltage Logic High 90% of Vdd Minimum
Output Voltage Logic Low 10% of Vdd Maximum
Input Voltage Logic High 70% of Vdd Minimum or No Connect to Enable Output
Input Voltage Logic Low 30% of Vdd Maximum to Disable Output (High Impedance)
Standby Current 10µA Maximum Disabled Output, High Impedance
Startup Time 10mSec Maximum
RMS Period Jitter 5pSec Maximum
6pSec Maximum		 Vdd = 2.5V, 2.8V, 3.0V or 3.3V
Vdd = 1.8V
Peak-to-Peak Period Jitter 30pSec Maximum
40pSec Maximum		 Vdd = 2.5V, 2.8V, 3.0V or 3.3V
Vdd = 1.8V
NOTES:   ● All minimum and maximum limits are specified over temperature and rated operating voltage with 15pF output unless otherwise stated.
                         ● A 0.1µF bypass capacitor is recommended between Vdd (pad 4) and GND (pad 2) to minimize power supply noise.


美國ILSI晶振|ISA12-3EAH-28.800 MHz|耐高溫振蕩器尺寸圖

原廠編碼 品牌 型號 工作溫度 頻率 頻率容差 負載
HC49USM-BA1F12- 24.000 MHz ILSI HC49USM 0°C ~ 70°C 24 MHz ±50ppm 12 pF
HC49USM-BA3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±50ppm 18 pF
HC49USM-BA5F18- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±50ppm 18 pF
HC49USM-BB3F10- 13.52313 MHz ILSI HC49USM -20°C ~ 70°C 13.52313 MHz ±50ppm 10 pF
HC49USM-BB5F20- 11.0592 MHz ILSI HC49USM -40°C ~ 85°C 11.0592 MHz ±50ppm 20 pF
HC49USM-FB1F18- 8.000 MHz ILSI HC49USM 0°C ~ 70°C 8 MHz ±30ppm 18 pF
HC49USM-FB1F18- 28.224 MHz ILSI HC49USM 0°C ~ 70°C 28.224 MHz ±30ppm 18 pF
HC49USM-FB1F20- 3.6864 MHz ILSI HC49USM 0°C ~ 70°C 3.6864 MHz ±30ppm 20 pF
HC49USM-FB2F30- 4.000 MHz ILSI HC49USM -10°C ~ 60°C 4 MHz ±30ppm 30 pF
HC49USM-FB2F30- 8.000 MHz ILSI HC49USM -10°C ~ 60°C 8 MHz ±30ppm 30 pF
HC49USM-FB3F10- 9.650 MHz ILSI HC49USM -20°C ~ 70°C 9.65 MHz ±30ppm 10 pF
HC49USM-FB3F18- 4.545 MHz ILSI HC49USM -20°C ~ 70°C 4.545 MHz ±30ppm 18 pF
HC49USM-FB3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±30ppm 18 pF
HC49USM-FB3F18- 25.175 MHz ILSI HC49USM -20°C ~ 70°C 25.175 MHz ±30ppm 18 pF
HC49USM-FB3F20- 6.000 MHz ILSI HC49USM -20°C ~ 70°C 6 MHz ±30ppm 20 pF
HC49USM-FB3F20- 8.000 MHz ILSI HC49USM -20°C ~ 70°C 8 MHz ±30ppm 20 pF
HC49USM-FB3F20- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±30ppm 20 pF
HC49USM-FB5F18- 3.579545 MHz ILSI HC49USM -40°C ~ 85°C 3.579545 MHz ±30ppm 18 pF
HC49USM-FB5F18- 4.194304 MHz ILSI HC49USM -40°C ~ 85°C 4.194304 MHz ±30ppm 18 pF
HC49USM-FB5F18- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±30ppm 18 pF
HC49USM-FB5F18- 20.000 MHz ILSI HC49USM -40°C ~ 85°C 20 MHz ±30ppm 18 pF
HC49USM-FB5F20- 3.6864 MHz ILSI HC49USM -40°C ~ 85°C 3.6864 MHz ±30ppm 20 pF
HC49USM-FB5F20- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±30ppm 20 pF
HC49USM-FB5F20- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±30ppm 20 pF
HC49USM-FB5F20- 12.288 MHz ILSI HC49USM -40°C ~ 85°C 12.288 MHz ±30ppm 20 pF
HC49USM-FB5F20- 16.000 MHz ILSI HC49USM -40°C ~ 85°C 16 MHz ±30ppm 20 pF
HC49USM-FF3F18- 3.6864 MHz ILSI HC49USM -20°C ~ 70°C 3.6864 MHz ±30ppm 18 pF
HC49USM-FF3F18- 4.000 MHz ILSI HC49USM -20°C ~ 70°C 4 MHz ±30ppm 18 pF
HC49USM-FF3F18- 4.9152 MHz ILSI HC49USM -20°C ~ 70°C 4.9152 MHz ±30ppm 18 pF
HC49USM-FF3F18- 6.000 MHz ILSI HC49USM -20°C ~ 70°C 6 MHz ±30ppm 18 pF
HC49USM-FF3F18- 6.144 MHz ILSI HC49USM -20°C ~ 70°C 6.144 MHz ±30ppm 18 pF
HC49USM-FF3F18- 7.3728 MHz ILSI HC49USM -20°C ~ 70°C 7.3728 MHz ±30ppm 18 pF
HC49USM-FF3F18- 8.000 MHz ILSI HC49USM -20°C ~ 70°C 8 MHz ±30ppm 18 pF
HC49USM-FF3F18- 11.0592 MHz ILSI HC49USM -20°C ~ 70°C 11.0592 MHz ±30ppm 18 pF
HC49USM-FF3F18- 12.000 MHz ILSI HC49USM -20°C ~ 70°C 12 MHz ±30ppm 18 pF
HC49USM-FF3F18- 14.7456 MHz ILSI HC49USM -20°C ~ 70°C 14.7456 MHz ±30ppm 18 pF
HC49USM-FF3F18- 16.000 MHz ILSI HC49USM -20°C ~ 70°C 16 MHz ±30ppm 18 pF
HC49USM-FF3F18- 18.432 MHz ILSI HC49USM -20°C ~ 70°C 18.432 MHz ±30ppm 18 pF
HC49USM-FF3F18- 20.000 MHz ILSI HC49USM -20°C ~ 70°C 20 MHz ±30ppm 18 pF
HC49USM-FF3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±30ppm 18 pF
HC49USM-FF3F18- 9.909116 MHz ILSI HC49USM -20°C ~ 70°C 9.909116 MHz ±30ppm 18 pF
HC49USM-FF5F10- 9.81713 MHz ILSI HC49USM -40°C ~ 85°C 9.81713 MHz ±30ppm 10 pF
HC49USM-FF5F18- 3.6864 MHz ILSI HC49USM -40°C ~ 85°C 3.6864 MHz ±30ppm 18 pF
HC49USM-FF5F18- 3.93216 MHz ILSI HC49USM -40°C ~ 85°C 3.93216 MHz ±30ppm 18 pF
HC49USM-FF5F18- 4.000 MHz ILSI HC49USM -40°C ~ 85°C 4 MHz ±30ppm 18 pF
HC49USM-FF5F18- 6.000 MHz ILSI HC49USM -40°C ~ 85°C 6 MHz ±30ppm 18 pF
HC49USM-FF5F18- 7.3728 MHz ILSI HC49USM -40°C ~ 85°C 7.3728 MHz ±30ppm 18 pF
HC49USM-FF5F18- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±30ppm 18 pF
HC49USM-FF5F18- 10.000 MHz ILSI HC49USM -40°C ~ 85°C 10 MHz ±30ppm 18 pF
HC49USM-FF5F18- 11.0592 MHz ILSI HC49USM -40°C ~ 85°C 11.0592 MHz ±30ppm 18 pF
HC49USM-FF5F18- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±30ppm 18 pF
HC49USM-FF5F18- 14.7456 MHz ILSI HC49USM -40°C ~ 85°C 14.7456 MHz ±30ppm 18 pF
HC49USM-FF5F18- 16.000 MHz ILSI HC49USM -40°C ~ 85°C 16 MHz ±30ppm 18 pF
HC49USM-FF5F18- 18.432 MHz ILSI HC49USM -40°C ~ 85°C 18.432 MHz ±30ppm 18 pF
HC49USM-FF5F18- 20.000 MHz ILSI HC49USM -40°C ~ 85°C 20 MHz ±30ppm 18 pF
HC49USM-FF5F18- 25.000 MHz ILSI HC49USM -40°C ~ 85°C 25 MHz ±30ppm 18 pF
IL3X-HX5F12.5- 32.768 KHz ILSI IL3X -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
IL3X2-HX5F12.5- 32.768 KHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
IL3X2-HX5F6- 32.768 KHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 6 pF
IL3X2-HX5F7- 32.768 kHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 7 pF
IL3X2-HX5F9- 32.768 kHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 9 pF
ILCX04-FB1F18- 27.000 MHz ILSI ILCX04 0°C ~ 70°C 27 MHz ±30ppm 18 pF
ILCX04-FB1F18- 28.224 MHz ILSI ILCX04 0°C ~ 70°C 28.224 MHz ±30ppm 18 pF
ILCX04-FB3F18- 7.3728 MHz ILSI ILCX04 -20°C ~ 70°C 7.3728 MHz ±30ppm 18 pF
ILCX04-FB5F20- 22.1184 MHz ILSI ILCX04 -40°C ~ 85°C 22.1184 MHz ±30ppm 20 pF
ILCX04-FB5F20- 25.000 MHz ILSI ILCX04 -40°C ~ 85°C 25 MHz ±30ppm 20 pF
ILCX04-FB5F20- 6.000 MHz ILSI ILCX04 -40°C ~ 85°C 6 MHz ±30ppm 20 pF
ILCX04-FF1F20- 8.000 MHz ILSI ILCX04 0°C ~ 70°C 8 MHz ±30ppm 20 pF
ILCX04-JH5F18- 8.000 MHz ILSI ILCX04 -40°C ~ 85°C 8 MHz ±10ppm 18 pF
ILCX07-BB3F12- 16.000 MHz ILSI ILCX07 -20°C ~ 70°C 16 MHz ±50ppm 12 pF
ILCX07-FB3F13-16.000MHz ILSI ILCX07 -20°C ~ 70°C 16 MHz ±30ppm 13 pF
ILCX07-FB5F12- 20.000 MHz ILSI ILCX07 -40°C ~ 85°C 20 MHz ±30ppm 12 pF
ILCX07-FF1F20- 25.000 MHz ILSI ILCX07 0°C ~ 70°C 25 MHz ±30ppm 20 pF
ILCX07-FF3F16- 9.984 MHz ILSI ILCX07 -20°C ~ 70°C 9.984 MHz ±30ppm 16 pF
ILCX07-FF3F16- 10.78125 MHz ILSI ILCX07 -20°C ~ 70°C 10.78125 MHz ±30ppm 16 pF
ILCX07-FF3F16- 13.560 MHz ILSI ILCX07 -20°C ~ 70°C 13.56 MHz ±30ppm 16 pF
ILCX07-FF5F12.5-8.000MHz ILSI ILCX07 -40°C ~ 85°C 8 MHz ±30ppm 12 pF
ILCX07-FF5F18- 24.000 MHz ILSI ILCX07 -40°C ~ 85°C 24 MHz ±30ppm 18 pF
ILCX07-FF5F18- 25.000 MHz ILSI ILCX07 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
ILCX07-FF5F20- 25.000 MHz ILSI ILCX07 -40°C ~ 85°C 25 MHz ±30ppm 20 pF
ILCX07-HB3F18- 20.000 MHz ILSI ILCX07 -20°C ~ 70°C 20 MHz ±20ppm 18 pF
ILCX07-HB3F18- 27.000 MHz ILSI ILCX07 -20°C ~ 70°C 27 MHz ±20ppm 18 pF
ILCX07-JJ2F10- 8.000 MHz ILSI ILCX07 -10°C ~ 60°C 8 MHz ±10ppm 10 pF
ILCX07-JJ3F10- 12.000 MHz ILSI ILCX07 -20°C ~ 70°C 12 MHz ±10ppm 10 pF
ILCX07A-FB1F12- 18.432 MHz ILSI ILCX07A 0°C ~ 70°C 18.432 MHz ±30ppm 12 pF
ILCX07A-FB3F18- 12.000 MHz ILSI ILCX07A -20°C ~ 70°C 12 MHz ±30ppm 18 pF
ILCX07B-FB1F18- 14.7456 MHz ILSI ILCX07B 0°C ~ 70°C 14.7456 MHz ±30ppm 18 pF
ILCX07B-FB1F18-27.120MHz ILSI ILCX07B 0°C ~ 70°C 27.12 MHz ±30ppm 18 pF
ILCX07B-FB5F20- 29.4912 MHz ILSI ILCX07B -40°C ~ 85°C 29.4912 MHz ±30ppm 20 pF
ILCX08-HH5F18- 8.000 MHz ILSI ILCX08 -40°C ~ 85°C 8 MHz ±20ppm 18 pF
ILCX08-JG5F18- 24.000 MHz ILSI ILCX08 -40°C ~ 85°C 24 MHz ±10ppm 18 pF
ILCX08-JH5F18- 8.000 MHz ILSI ILCX08 -40°C ~ 85°C 8 MHz ±10ppm 18 pF
ILCX08-JH5F18- 16.000 MHz ILSI ILCX08 -40°C ~ 85°C 16 MHz ±10ppm 18 pF
ILCX13-BB5F10- 12.000000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±50ppm 10 pF
ILCX13-BB5F10- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±50ppm 10 pF
ILCX13-BB5F10- 49.152 MHz ILSI ILCX13 -40°C ~ 85°C 49.152 MHz ±50ppm 10 pF
ILCX13-BH3F18- 12.000 MHZ ILSI ILCX13 -20°C ~ 70°C 12 MHz ±50ppm 18 pF
ILCX13-FB5F15- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±30ppm 15 pF
ILCX13-FB5F18- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±30ppm 18 pF
ILCX13-FB5F18- 16.000 MHz ILSI ILCX13 -40°C ~ 85°C 16 MHz ±30ppm 18 pF
ILCX13-FB5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±30ppm 18 pF
ILCX13-FB5F18- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
ILCX13-FF3F10- 12.000 MHz ILSI ILCX13 -20°C ~ 70°C 12 MHz ±30ppm 10 pF
ILCX13-FF3F8- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±30ppm 8 pF
ILCX13-FF5F18- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±30ppm 18 pF
ILCX13-FF5F18- 16.000 MHz ILSI ILCX13 -40°C ~ 85°C 16 MHz ±30ppm 18 pF
ILCX13-FF5F18- 20.000 MHz ILSI ILCX13 -40°C ~ 85°C 20 MHz ±30ppm 18 pF
ILCX13-FF5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±30ppm 18 pF
ILCX13-FF5F18- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
ILCX13-FF5F18- 32.000 MHz ILSI ILCX13 -40°C ~ 85°C 32 MHz ±30ppm 18 pF
ILCX13-HB3F18- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±20ppm 18 pF
ILCX13-HB3F18- 32.000 MHz ILSI ILCX13 -20°C ~ 70°C 32 MHz ±20ppm 18 pF
ILCX13-HF3F18- 12.000 MHz ILSI ILCX13 -20°C ~ 70°C 12 MHz ±20ppm 18 pF
ILCX13-HF3F18- 25.000 MHz ILSI ILCX13 -20°C ~ 70°C 25 MHz ±20ppm 18 pF
ILCX13-HF5F10- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±20ppm 10 pF
ILCX13-HF5F12- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±20ppm 12 pF
ILCX13-HF5F12- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±20ppm 12 pF
ILCX13-HF5F18- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±20ppm 18 pF
ILCX13-HF5F18- 16.000 MHz ILSI ILCX13 -40°C ~ 85°C 16 MHz ±20ppm 18 pF
ILCX13-HF5F18- 22.1184 MHz ILSI ILCX13 -40°C ~ 85°C 22.1184 MHz ±20ppm 18 pF
ILCX13-HF5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±20ppm 18 pF
ILCX13-HF5F18- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±20ppm 18 pF
ILCX13-HF5F18- 48.000 MHz ILSI ILCX13 -40°C ~ 85°C 48 MHz ±20ppm 18 pF
ILCX13-HG5F19 -50.2232 MHz ILSI ILCX13 -40°C ~ 85°C 50.2232 MHz ±20ppm 19 pF
ILCX13-HH3F18- 25.000 MHz ILSI ILCX13 -20°C ~ 70°C 25 MHz ±20ppm 18 pF
ILCX13-HH3F18- 27.000 MHz ILSI ILCX13 -20°C ~ 70°C 27 MHz ±20ppm 18 pF
ILCX13-HH3F8- 10.77938 MHz ILSI ILCX13 -20°C ~ 70°C 10.77938 MHz ±20ppm 8 pF
ILCX13-HH3F8- 10.78125 MHz ILSI ILCX13 -20°C ~ 70°C 10.78125 MHz ±20ppm 8 pF
ILCX13-HH5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±20ppm 18 pF
ILCX13-IH1F12- 24.000 MHz ILSI ILCX13 0°C ~ 70°C 24 MHz ±15ppm 12 pF
ILCX13-IH1F12- 25.000 MHz ILSI ILCX13 0°C ~ 70°C 25 MHz ±15ppm 12 pF
ILCX13-II3F8- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±15ppm 8 pF
ILCX13-II5F8- 40.000 MHz ILSI ILCX13 -40°C ~ 85°C 40 MHz ±15ppm 8 pF
ILCX13-JH5F8-39.000 MHz ILSI ILCX13 -40°C ~ 85°C 39 MHz ±10ppm 8 pF
ILCX13-JI1F9- 32.000 MHz ILSI ILCX13 0°C ~ 70°C 32 MHz ±10ppm 9 pF
ILCX13-JI5F10- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±10ppm 10 pF
ILCX13-JI5F8- 32.000 MHz ILSI ILCX13 -40°C ~ 85°C 32 MHz ±10ppm 8 pF
ILCX13-JI5F9- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±10ppm 9 pF
ILCX13-JJ2F10-30.000 MHz ILSI ILCX13 -10°C ~ 60°C 30 MHz ±10ppm 10 pF
ILCX13-JJ2F7- 16.000 MHz ILSI ILCX13 -10°C ~ 60°C 16 MHz ±10ppm 7 pF
ILCX13-JJ3F10- 16.000 MHz ILSI ILCX13 -20°C ~ 70°C 16 MHz ±10ppm 10 pF
ILCX13-JJ3F10- 32.000 MHz ILSI ILCX13 -20°C ~ 70°C 32 MHz ±10ppm 10 pF
ILCX13-JJ3F16- 16.000 MHz ILSI ILCX13 -20°C ~ 70°C 16 MHz ±10ppm 16 pF
ILCX13-JJ3F4- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±10ppm 4 pF
ILCX13-JJ3F9- 16.000 MHz ILSI ILCX13 -20°C ~ 70°C 16 MHz ±10ppm 9 pF
ILCX18-FF3F18- 25.000 MHz ILSI ILCX18 -20°C ~ 70°C 25 MHz ±30ppm 18 pF
ILCX18-FF5F18- 16.000 MHz ILSI ILCX18 -40°C ~ 85°C 16 MHz ±30ppm 18 pF
ILCX18-FF5F18- 25.000 MHz ILSI ILCX18 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
ILCX18-JI5F8- 32.000 MHz ILSI ILCX18 -40°C ~ 85°C 32 MHz ±10ppm 8 pF
公司：深圳市億金電子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://www.lbfp.com.cn
地址：廣東省深圳市寶安區新安107國道旁

相關產品

誠征下列地區 晶振 | 石英晶振 | 圓柱晶振 | 貼片晶振 | 陶瓷晶振 | 石英晶體諧振器 | 頻率元件 的合作伙伴：
深圳市 廣州市 北京 上海 東莞 佛山 中山 順德 珠海 杭州 溫州 武漢 長沙 南京 大連 長春 西安 鄭州 澳門 沈陽 南寧 昆明 濟南 重慶 成都
kf
kf
close
kf 億金微信號
主站蜘蛛池模板： 成人免费小视频| 国产电影无码午夜在线播放| 国产av久久免费观看| 湖南电台在线收听| 啪啪做羞羞事小黄文| 亚洲精品久久久久AV无码| c了瑜伽老师嗷嗷叫一节课视频| 国产树林野战在线播放| 男女AA片免费| 亚洲免费精品| 嘟嘟嘟WWW在线观看视频高清| 精品无码无人网站免费视频| 日本无码免费久久久精品| 一二三区乱码不卡手机版| 成人手机在线观看| 久久足恋网| 性生生活大片又黄又| TUBE19UP老师学生| 久久re这里视频精品15| 撕开美女的衣服2| 99国产在线精品视频| 精品久久久久久综合网| 天美麻豆成人AV精品视频| 99亚洲精品| 久久国产免费观看精品1| 午夜剧场1000| 糙汉顶弄抽插HHHH| 美女撒尿无遮挡免费中国| 亚洲精品一本之道高清乱码| 囯产精品一区二区三区线| 免费在线伦理片| 影音先锋av电影| 国产一区二区三区国产精品| 日韩男明星| brazzers欧美孕交| 久久久亚洲国产精品主播 | 亚洲AV色香蕉一区二区9255| 超碰97免费人妻| 暖暖免费观看日本在线视频| 伊人网站在线| 好大太快了快插穿子宫了|
