Rakon推出了首款集成電路ROM1490X支持8小時延期

來源:http://www.lbfp.com.cn 作者:億金電子 2024年05月22
Rakon推出了首款集成電路ROM1490X支持8小時延期
Rakon推出面向云數據中心和下一代電信網絡的小型IC-OCXO,支持8小時延期
隨著5G/5G Advanced和工業5.0的發展,以及無線接入網絡的開放,數據中心在新興網絡架構中發揮著重要作用。
與傳統應用程序不同,數據中心的新應用程序有嚴格的同步要求?;诜掌鞯腄U同步部署需要能夠承受數據中心惡劣環境的低功耗和小尺寸組件。
XMEMS支持的Rakon基于IC的頻率控制設備®基于的諧振器能夠抵御沖擊和振動,并在小尺寸和低功耗下提供高穩定性性能。
Rakon推出了首款集成電路OCXO晶體振蕩器產品,結合了其內部設計的Mercury半導體芯片和XMEMS®MercuryX品牌的諧振器。MercuryX OCXOs提供了超高的穩定性和8小時的延長保持時間。在現實條件下,所有器件都采用小尺寸封裝。新型OCXOs非常適合人工智能計算/數據中心、5G、5G Advanced和6G電信網絡以及衛星終端和儀器儀表的計時和同步。
Rakon產品管理負責人Reza Sedehi表示:“MercuryX產品展示了XMEMS等下一代石英技術可能帶來的性能提升。首批1000多個MercuryX樣品引起了一級客戶的高度興趣和積極反饋。新產品建立在Rakon十多年來持續大批量提供基于高質量ASIC的ocxo(IC-ocxo)的成功記錄之上。”
MercuryX之前推出了Niku,這是Rakon最新的內部設計的ASIC半導體芯片,用于超穩定的TCXO晶振,是該公司人工智能計算產品組合的下一款產品。
新的MercuryX OCXOs在穩定性(1.5 ppb)、頻率斜率(0.05 ppb/°C)和老化(0.2 ppb/天)方面比當前的IC-OCXO系列石英晶體振蕩器性能提高了三倍。更重要的是,MercuryX滿足了數據中心和高級電信網絡備受追捧的保持要求(8小時)。
開發自己的內部諧振器和芯片技術使Rakon能夠控制其產品路線圖,創造出像MercuryX這樣的市場領先產品,這些產品在其新西蘭和印度的工廠中獨立制造,為客戶提供高度安全的供應。
該系列的首款產品是采用14x9mm封裝的ROM1490X,隨后將于2024年年中推出7x5mm產品。Rakon已經在研究Mercury芯片的下一代產品,新的ASIC將于2025年發布,以進一步提高性能。
Rakon推出了首款集成電路ROM1490X支持8小時延期
ROM1490X的主要性能參數:
封裝:14.2x9.2x6.5毫米,6焊盤貼片晶振
頻率:10至50MHz
工作溫度:- 40至95攝氏度
頻率穩定性(FvT):1.5ppb
延期:8小時
頻率斜率(δF/δT):0.05ppb/℃
老化:0.2ppb/天
重力敏感度:0.9ppb/g
定制的MercuryX產品通過先進的I C總線數字控制、GNSS 1PPS輸入和/或機器學習進一步優化了長期穩定性。
我們的小尺寸OCXOs基于領先的專有Mercury和Mercury+技術。它們在整個溫度范圍內具有出色的頻率穩定性。MercuryX是Rakon的首款OCXO,采用了其專有的Mercury ASIC和XMEMS諧振器技術,增強了穩定性和保持性能。例如,ROM1490X有源晶振在-40°C至+95°C溫度范圍內實現了1.5ppb的頻率穩定性,保持時間為8小時,頻率老化為0.2ppb/天。
這種高度集成的基于ASIC的OCXO設計具有最少的互連數量,從而顯著提高了可靠性,并因此降低了設備的總擁有成本(TCO)。
應用程序:Data中心同步,5G基站和小型蜂窩、5G高級、6G無線接入網絡(RAN)、網絡定時、3E同步(IEEE1588,SyncE)、5G RRHs、光網絡和微波傳輸系統。

Rakon推出了首款集成電路ROM1490X支持8小時延期
Rakon launches Small Form Factor IC-OCXO with 8hr holdover for cloud data centres and next-generation telecom networks
Rakon has launched its first IC-OCXO products combining its in-house designed Mercury™ semiconductor chip and XMEMS® resonators under the brand MercuryX™. MercuryX OCXOs provide ultra-high stability and an extended holdover of 8 hours. in real-world conditions, all in a small form factor package size. The new OCXOs are an excellent fit for timing and synchronisation in AI computing / data centres and 5G, 5G Advanced and 6G telecommunications networks as well as satellite terminals and instrumentation.
Reza Sedehi, Head of Product Management at Rakon says: “The MercuryX products showcase the performance gains that are possible with next-generation quartz technology such as XMEMS. The initial 1000+ samples of MercuryX have generated high interest and positive feedback from tier-1 customers. The new products build on Rakon’s successful track record of consistently delivering high-quality ASIC based OCXOs (IC-OCXOs) in large volumes for over a decade.”
MercuryX follows the launch of Niku™, Rakon’s latest in-house designed ASIC semiconductor chip for Ultra Stable TCXOs, as the next entry in the company’s AI computing product portfolio.
The new MercuryX OCXOs offer a three-fold performance improvement on the current IC-OCXO range in terms of stability (±1.5 ppb), frequency slope (0.05 ppb/°C) and ageing (0.2 ppb/day). Even more importantly, MercuryX satisfies the much sought-after holdover requirements (8 hrs) for data centres and advanced telecom networks.
The development of its own in-house resonator and chip technology allows Rakon to control its product roadmap, creating market-leading products like MercuryX that are independently manufactured in its factories in New Zealand and India, providing customers with high security of supply.
The first product in the range is the ROM1490X in a 14 x 9 mm package, to be followed by a 7 x 5 mm product in mid 2024. Rakon is already working on the next iteration of the Mercury chip, with a new ASIC to be released in 2025 for further performance gains.
Rakon推出了首款集成電路ROM1490X支持8小時延期
Key performance parameters of the ROM1490X:
Package: 14.2 x 9.2 x 6.5 mm, 6-pad, SMD
Frequency (Fn): 10 to 50 MHz
Operating temperature: - 40 to 95°C

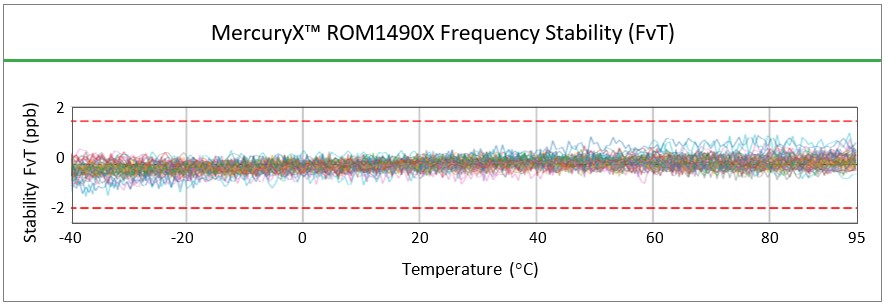

Frequency stability (FvT): ±1.5 ppb
Holdover: 8 hrs
Frequency slope (ΔF/ΔT): 0.05 ppb/°C
Ageing: 0.2 ppb/day
G-sensitivity: 0.9 ppb/g
Custom MercuryX products with further optimised long-term stability through advanced I²C bus digital control, GNSS 1PPS input and/or machine learning are available on request.
